產品詳情

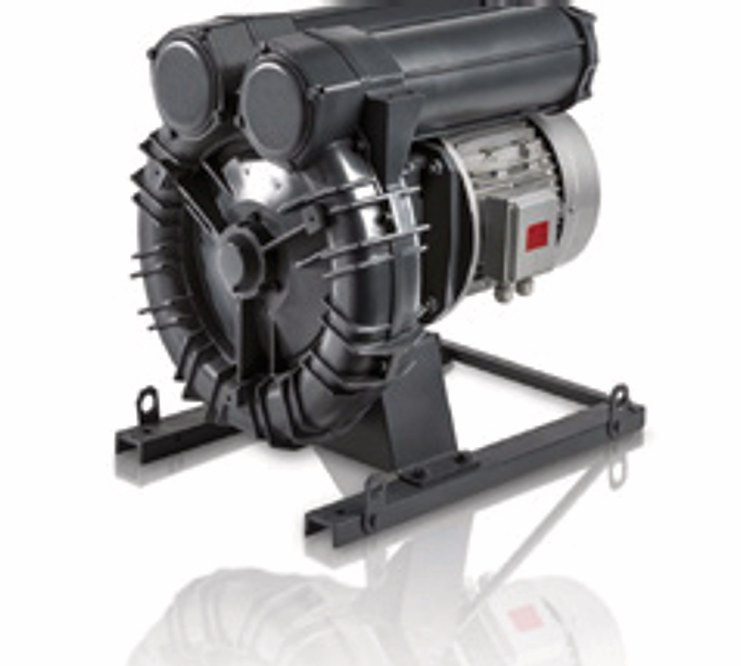

ATEX防爆風機

意大利FPZ ATEX防爆風機的產品系列,產品優勢,技術特點,產品型號,技術參數,樣本圖冊

所屬分類：
ATEX防爆風機
瀏覽次數： 161
發布時間： 2025-09-17

立即咨詢

產品詳情

PFZ ATEX防爆風機產品系列

ATEX II 2GD

ATEX II 3GD

PFZ ATEX防爆風機產品優勢

ATEX II 2GD

鋁合金結構
高效葉輪
表面保護處理
適用于IIB組分類氣體和沼氣
符合UNIEN 1092-1標準的PN16DN50法蘭連接OPTIONS
可提供選項

-無冷凝水排放
-電機IP65
-特殊電壓(IEC60038)

ATEX II 3GD

鋁合金結構
平穩運行
電機-IE3寬范圍電機,IP65防護等級,F級絕緣，適用變頻器
標配熱保護器(PTO)
可提供選項

-特殊電壓(IEC60038)
-表面處理

-增強密封版本

PFZ ATEX防爆風機技術特點

可提供最高 2400 m3/h 的風量，及 -450~650 mbar 的風壓

PFZ防爆風機型號說明

意大利PFZ風機單葉輪/單級/單段再生風機/漩渦風機/旋渦風機/側流風機/側通道鼓風機/真空泵/氣泵/曝氣風機

產品系列	型號	子型號
06 Series	-	SCL 06B-.33-115/230
06 Series	-	SCL 06B-.5-115/230
06 Series	-	SCL 06B-.5-3
K03-06-MS Series	K03-MS	SCL K03-MS-.75-115/230 NP
K03-06-MS Series	K03-MS	SCL K03-MS-1-115/230 NP
K03-06-MS Series	K03-MS	SCL K03-MS-.75-3 NP
K03-06-MS Series	K03-MS	SCL K03-MS-1-3 NP
K03-06-MS Series	K04-MS	SCL K04-MS-1.5-115/230 NP
K03-06-MS Series	K04-MS	SCL K04-MS-2-115/230 NP
K03-06-MS Series	K04-MS	SCL K04-MS-3-115/230 NP
K03-06-MS Series	K04-MS	SCL K04-MS-1.5-3 NP
K03-06-MS Series	K04-MS	SCL K04-MS-2-3 NP
K03-06-MS Series	K04-MS	SCL K04-MS-3-3 NP
K03-06-MS Series	K05-MS	SCL K05-MS-2-115/230 NP
K03-06-MS Series	K05-MS	SCL K05-MS-3-115/230 NP
K03-06-MS Series	K05-MS	SCL K05-MS-2-3 NP
K03-06-MS Series	K05-MS	SCL K05-MS-3-3 NP
K03-06-MS Series	K05-MS	SCL K05-MS-4-3 NP
K03-06-MS Series	K06-MS	SCL K06-MS-3-115/230 NP
K03-06-MS Series	K06-MS	SCL K06-MS-3-3 NP
K03-06-MS Series	K06-MS	SCL K06-MS-4-3 NP
K03-06-MS Series	K06-MS	SCL K06-MS-5.5-3 NP
K03-06-MS Series	K06-MS	SCL K06-MS-6.2-3 NP
K07-10-MS Series	K07-MS	SCL K07-MS-4-3
K07-10-MS Series	K07-MS	SCL K07-MS-5.5-3
K07-10-MS Series	K07-MS	SCL K07-MS-7.5-3
K07-10-MS Series	K07-MS	SCL K07-MS-10-3
K07-10-MS Series	K08-MS	SCL K08-MS-5.5-3
K07-10-MS Series	K08-MS	SCL K08-MS-7.5-3
K07-10-MS Series	K08-MS	SCL K08-MS-10-3
K07-10-MS Series	K08-MS	SCL K08-MS-15-3
K07-10-MS Series	K09-MS	SCL K09-MS-7.5-3
K07-10-MS Series	K09-MS	SCL K09-MS-10-3
K07-10-MS Series	K09-MS	SCL K09-MS-15-3
K07-10-MS Series	K09-MS	SCL K09-MS-20-3
K07-10-MS Series	K10-MS	SCL K10-MS-7.5-3
K07-10-MS Series	K10-MS	SCL K10-MS-10-3
K07-10-MS Series	K10-MS	SCL K10-MS-15-3
K07-10-MS Series	K10-MS	SCL K10-MS-20-3
K07-10-MS Series	K10-MS	SCL K10-MS-25-3
e07-MS Series	e07-MS	SCL e07-MS-4-3
e07-MS Series	e07-MS	SCL e07-MS-5.5-3
e07-MS Series	e07-MS	SCL e07-MS-7.5-3
e07-MS Series	e07-MS	SCL e07-MS-10-3
e08 MS Series	e08-MS	SCL e08-MS-5.5-3
e08 MS Series	e08-MS	SCL e08-MS-7.5-3
e08 MS Series	e08-MS	SCL e08-MS-10-3
e08 MS Series	e08-MS	SCL e08-MS-15-3
e09 MS Series	e09-MS	SCL e09-MS-7.5-3
e09 MS Series	e09-MS	SCL e09-MS-10-3
e09 MS Series	e09-MS	SCL e09-MS-15-3
e09 MS Series	e09-MS	SCL e09-MS-20-3
e10 MS Series	e10-MS	SCL e10-MS-7.5-3
e10 MS Series	e10-MS	SCL e10-MS-10-3
e10 MS Series	e10-MS	SCL e10-MS-15-3
e10 MS Series	e10-MS	SCL e10-MS-20-3
e10 MS Series	e10-MS	SCL e10-MS-25-3
e11-MS Series	e11-MS	SCL e11-MS-15-3
e11-MS Series	e11-MS	SCL e11-MS-20-3
e11-MS Series	e11-MS	SCL e11-MS-25-3
e12-MS Series	e12-MS	SCL e12-MS-15-3
e12-MS Series	e12-MS	SCL e12-MS-20-3
e12-MS Series	e12-MS	SCL e12-MS-25-3
K05-06-TS Series	K05-TS	SCL K05-TS-5.5-3 NP
K05-06-TS Series	K06-TS	SCL K06-TS-5.5-3 NP
e07-TS Series	e07-TS	SCL e07-TS-7.5-3
e07-TS Series	e07-TS	SCL e07-TS-10-3
e07-TS Series	e07-TS	SCL e07-TS-15-3
e08 TS Series	e08-TS	SCL e08-TS-15-3
e09 TS Series	e09-TS	SCL e09-TS-20-3
e09 TS Series	e09-TS	SCL e09-TS-25-3
e10 TS Series	e10-TS	SCL e10-TS-20-3
e10 TS Series	e10-TS	SCL e10-TS-25-3
K09-10-TS Series	K09-TS	SCL K09-TS-20-3
K09-10-TS Series	K09-TS	SCL K09-TS-25-3
K09-10-TS Series	K10-TS	SCL K10-TS-20-3
K09-10-TS Series	K10-TS	SCL K10-TS-25-3
e11-TS Series	e11-TS	SCL e11-TS-25-3
e11-TS Series	e11-TS	SCL e11-TS-30-3
e12-TS Series	e12-TS	SCL e12-TS-30-3
e07-MD Series	e07-MD	scl e07-MD-5.5-3
e07-MD Series	e07-MD	scl e07-MD-7.5-3
e07-MD Series	e07-MD	scl e07-MD-10-3
e08-MD Series	e08-MD	scl e08-MD-5.5-3
e08-MD Series	e08-MD	scl e08-MD-7.5-3
e08-MD Series	e08-MD	scl e08-MD-10-3
e08-MD Series	e08-MD	scl e08-MD-15-3
e09-MD Series	e09-MD	scl e09-MD-10-3
e09-MD Series	e09-MD	scl e09-MD-15-3
e10-MD Series	e10-MD	scl e10-MD-10-3
e10-MD Series	e10-MD	scl e10-MD-15-3
e10-MD Series	e10-MD	scl e10-MD-20-3
e11-MD Series	e11-MD	scl e11-MD-15-3
e11-MD Series	e11-MD	scl e11-MD-20-3
e12-MD Series	e12-MD	scl e12-MD-15-3
e12-MD Series	e12-MD	scl e12-MD-20-3
R-MD Series	R20-MD	SCL R20-MD-1.5-115/230
R-MD Series	R20-MD	SCL R20-MD-1.5-3
R-MD Series	R30-MD	SCL R30-MD-2-115/230
R-MD Series	R30-MD	SCL R30-MD-3-115/230
R-MD Series	R30-MD	SCL R30-MD-2-3
R-MD Series	R30-MD	SCL R30-MD-3-3
R-MD Series	R40-MD	SCL R40-MD-3-115/230
R-MD Series	R40-MD	SCL R40-MD-3-3
R-MD Series	R40-MD	SCL R40-MD-4-3
K09-10-TD Series	K09-TD	SCL K09-TD-25-3
K09-10-TD Series	K10-TD	SCL K10-TD-25-3
K05-06-TD Series	K05-TD	SCL K05-TD-5.5-3 NP
K05-06-TD Series	K06-TD	SCL K06-TD-10-3 A
e07-TD Series	e07-TD	SCL e07-TD-15-3
e08-TD Series	e08-TD	SCL e08-TD-15-3
e09-TD Series	e09-TD	SCL e09-TD-25-3
e10-TD Series	e10-TD	SCL e10-TD-25-3
SCL e11-TD Series	e11-TD	SCL e11-TD-25-3
e12-TD Series	e12-TD	SCL e12-TD-30-3
15DH Series	SCL 15DH	SCL 15DH-.75-115/230
15DH Series	SCL 15DH	SCL 15DH-1-115/230
15DH Series	SCL 15DH	SCL 15DH-.75-3
15DH Series	SCL 15DH	SCL 15DH-1-3
